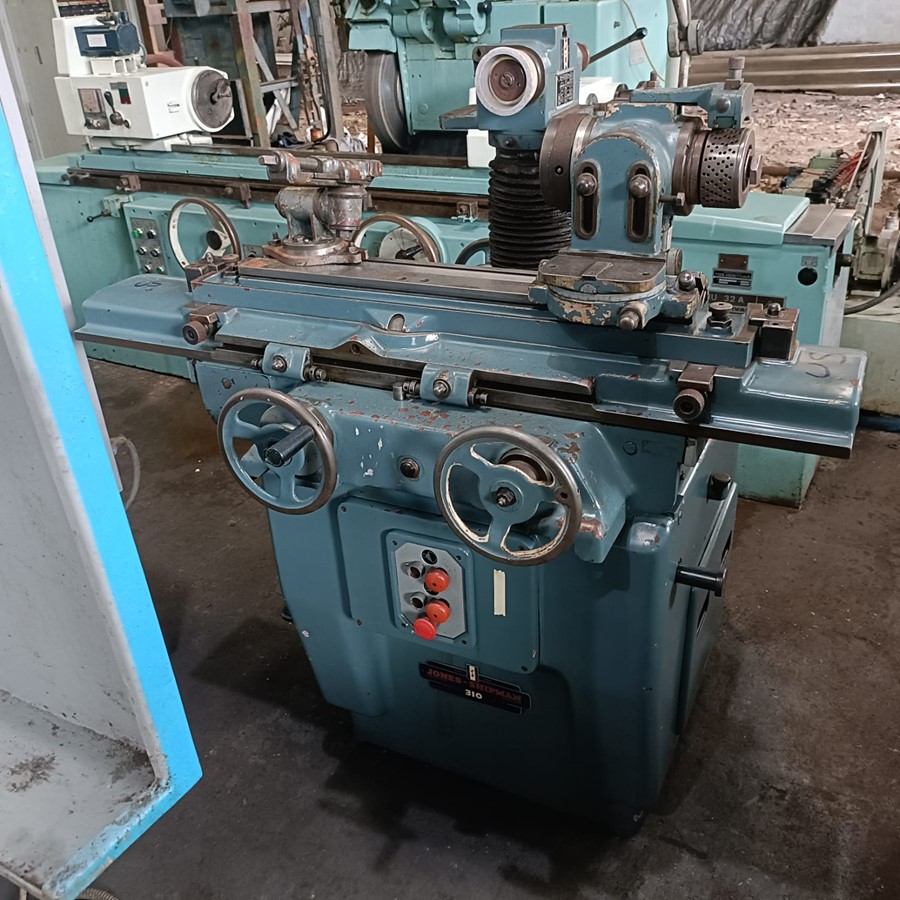

Jones & Shipman 310



Jones & Shipman
Machine Name: Tool & Cutting Grinder
Manufacturer: Jones & Shipman
Model: 310s
Location: Mumbai
Technical Specification:
Max. Swing Diameter on Centers - 200 mm
Max. Swing Diameter on Cutter Head - 305 mm
Length between tailstock Centers - 480 mm
Longitudinal Travel - 445 mm
Cross Travel - 187 mm
Working Surface - 750 mm x 110 mm
Wheel Speed - 3,600 rpm to 5,000 rpm
