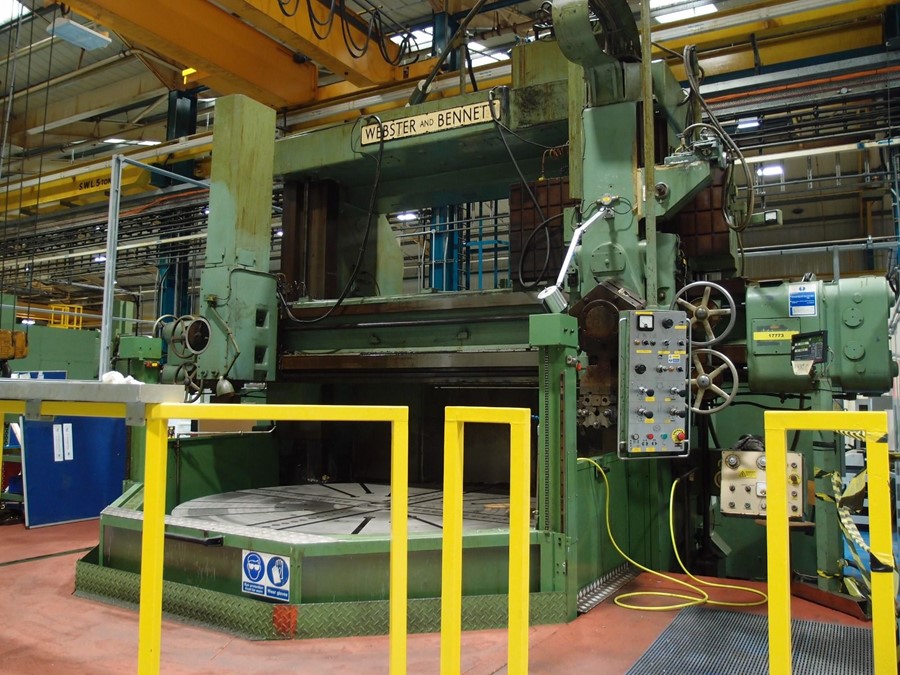

WEBSTER & BENNETT
Machine Type: DC VTL & Boring
Model: DCH-120
Technical Specification:
Model : DCH 120
Chuck Dia: 108"
Swing Dia : 122"
Timken Cross Roller table bearing.
Height Under Cross Rail : 2000mm
Table Load 25tons.
Ram Slide 48"(1220mm) Vertical Travel.
Turret Slide 38" (965mm).
Table speeds 1.5 to 39.5rpm.
Please note by changing the belt on the pulley, it is possible to double the table speeds.
Feeds .05 to 2.5 mm/rev.
With Power indexing turret Newall DP700 2 axis DRO.
Pendant control.
Hardened slides all round.
Interlocked table guarding.
Pendant fitted to right hand side.
